Heesen 50 Metre Super Yacht


Heesen Join Together Hull and Superstructure of 2nd 50 Metre Superyacht

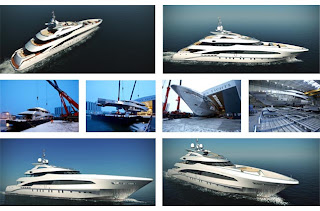

From Oss in Holland comes news that Heesen Yachts have joined together the hull and superstructure their new 50 metre semi-displacement motor yacht

Known at this stage only as hull number 15850, she is the second in the new 5000 class and is one of the few vessels of this length whose Gross Tonnage is below the magical 500gt benchmark.

She carries the typical hard-chine hull shape, conceived by the yard’s in-house naval architects, along with the equally recognisable pelican-beak bow and negative sheer. Her exterior design is the result of the collaboration between the builders in-house Design and Development team and Frank Laupman of Omega Architects

Twin MTU 16V 4000 M90 diesels, will give her a maximum speed of 23 Knots.



Delivery is scheduled for 2011.

Hull Number 15850 Specifications

  • Hull type: Twin screw, hard chine, semi-displacement motor yacht
  • Naval Architect: Heesen Yachts
  • Exterior Designer: Omega Architects
  • Interior Designer: Omega Architects
  • Classification: ABS A1 Yachting Service AMS Large Commercial Yacht Code LY2 / MCA
  • Hull: Aluminium
  • Superstructure: Aluminium
  • DIMENSIONS:
  • Length overall: 49.80 metres 163ft 4in
  • Beam overall: 9.00 metres 29ft 6in
  • Draught: 2.50 metres 8ft 2in
  • Tonnage: Less than 500 GT
  • Displacement: 295 tonnes 650,350 lbs (Half load)
  • TECHNICAL DETAILS
  • Maximum speed: 23.0 knots
  • Range at 12 knots: 3,200 nautical miles
  • Fuel capacity: 68.8 m3 18,200 US Gallons
  • Fresh water: 16.2 m3 4,300 US Gallon
  • PROPULSION SYSTEM
  • Main engines: 2 x MTU 16V 4000 M90 diesels
  • Maximum power: 2 x 2.720 kW
  • Gearbox: 2 x ZF 7550
  • Engine control: MTU Blue vision, three control stands
  • Shafts: Stainless steel 431, ∅145mm
  • Propellers: Schaffran five-blade, fixed pitch ∅1,450 mm
  • Generators: 2 x Kilopak
  • Power: 2 x 99 kW, 50Hz, three phase 230/400V
  • Bow-thruster: HRP type 1000, 90 kW, hydraulic driven
  • Steering system: Sperry Marine Systems, type 2.S.25.35.2
  • Rudders: Two stainless steel rudders with stainless steel 431 shafts
  • Stabilizers: VT Naiad, type 720, at anchor, with 2 fins of approx. 3.5 m2 (37.5 ft2)
